Water Cycle 2

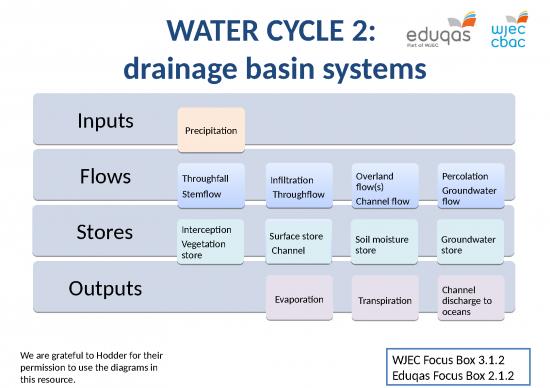

  The drainage basin system
  • The drainage basin is a subset of the global
   hydrological cycle
  • It is defined as a catchment area forming part of the
   Earth's surface area which is drained by a particular
   stream or river
  • It is an open system which allows energy and matter
   to be transferred across its boundary (the watershed
   or drainage divide) from external areas
  Class activity
  Why is a river drainage basin an open system,
  whereas the global water cycle is a closed system?
        Water Cycle 2
        Drainage basin inputs
        • There is only
             one physical
             input into a
             drainage basin:
             precipitation
        • Precipitation
             types are
             varied: they
             includes rain,
             snow, sleet                     Class activity
             hail and frost Why do drainage basin inputs vary from
  (c) Hodder Education [Edexcel       A-     place to place or from time to time?
  level Geography Book 2 (Dunn)]
  Water Cycle 2
  Precipitation variations
  • The duration and intensity of precipitation both affect
   how a drainage basin system responds
  • Very high-intensity rainfall of 50-100 millimetres per
   hour is rare; it can result in  flash flooding
  • In Boscastle, 185mm rainfall fell in just five hours in
   2004 (equivalent to two months of normal rainfall)
  • Low intensity but relatively long duration rainfall is far
   more common in the UK
  Class activity
  What processes could explain the link between high-
  intensity rainfall and flash flooding?
    Water Cycle 2
    Drainage basin flows (1)
                                                    Class
                                                    activity
                                                    How many
                                                    water flows
                                                    are shown
                                                    in this
                                                    diagram?
                                                  (c) Hodder Education
                                                  [Edexcel A-level Geography
                                                  Book 2 (Dunn)]
    Water Cycle 2
    Drainage basin flows (2)
     •  Rainwater dripping from leaves and branches
        towards the ground is called throughfall
     •  Water which flows to the ground via vegetation
        stems and trunks is stemflow
     •  Infiltration is the movement of water from the
        ground surface into the soil
     •  Throughflow is the movement of water laterally
        (sideways) through the soil, via (1) a matrix of pore
        spaces, fissures and (2) pipes (animal burrows)
     Class activity
     Why might drainage basin water flows vary from
     place to place or from time to time?
