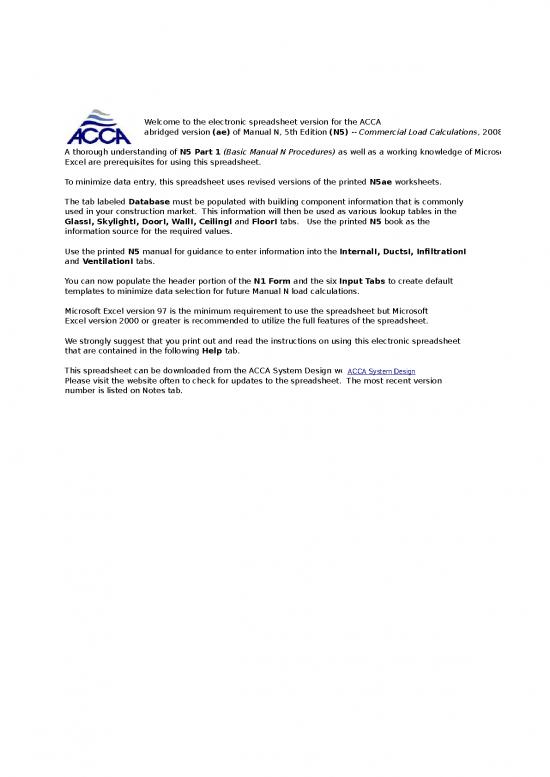

Sheet 1: Welcome






























Welcome to the electronic spreadsheet version for the ACCA



















abridged version (ae) of Manual N, 5th Edition (N5) -- Commercial Load Calculations, 2008








































A thorough understanding of N5 Part 1 (Basic Manual N Procedures) as well as a working knowledge of Microsoft

























Excel are prerequisites for using this spreadsheet.




















































To minimize data entry, this spreadsheet uses revised versions of the printed N5ae worksheets.




















































The tab labeled Database must be populated with building component information that is commonly

























used in your construction market.  This information will then be used as various lookup tables in the

























GlassI, SkylightI, DoorI, WallI, CeilingI and FloorI tabs.   Use the printed N5 book as the

























information source for the required values.




















































Use the printed N5 manual for guidance to enter information into the InternalI, DuctsI, InfiltrationI

























and VentilationI tabs.




















































You can now populate the header portion of the N1 Form and the six Input Tabs to create default

























templates to minimize data selection for future Manual N load calculations.




















































Microsoft Excel version 97 is the minimum requirement to use the spreadsheet but Microsoft

























Excel version 2000 or greater is recommended to utilize the full features of the spreadsheet.




















































We strongly suggest that you print out and read the instructions on using this electronic spreadsheet

























that are contained in the following Help tab.




















































This spreadsheet can be downloaded from the ACCA System Design website.



















ACCA System Design




Please visit the website often to check for updates to the spreadsheet.  The most recent version

























number is listed on Notes tab.

























Sheet 2: Help





ACCA Manual N, 5th Edition, Abridged Version
























































































































































































 *** Refer to the Notes Tab to verify the latest revision ***
























































































































































































Help Section






























































































Refer to Manual N Load Calculations for Low-Rise Commercial Buildings, Fifth Edition Version 1.xx



























































































Step 1: Go to the Form N1 tab and select your default design state and city .



























































































Step 2: Go to the Database tab and enter the building components used most frequently in your geographic and market area.






























































































The items entered here can be selected later from a custom list of your component inputs reducing the time to sort



























































































thru hundreds of possible choices that may never be used in your area.  The database can have items added or



























































































changed as the need arises.  Note: Database entries must correspond to the design conditions selected in step 1.



























































































Important: The Construction Number must always be included and precede the description for the Database entries






























































































Glass Database






























































































Enter construction numbers 1 thru 7 and 10 from tables 2A & 2C



























































































Enter a description that corresponds to the construction number



























































































Enter the frame construction that corresponds to the construction number



























































































Enter the U-Value that corresponds to the construction number and frame type



























































































Enter the SHGC that corresponds to the construction number and frame type
























































































Skylights Database






























































































Enter construction numbers 8 and 9 from table 2A



























































































Enter a description that corresponds to the construction number



























































































Enter the frame construction that corresponds to the construction number



























































































Enter the Ueff that corresponds to the construction number and frame type



























































































Enter the SHGC that corresponds to the construction number and frame type
























































































Doors Database






























































































Enter construction number 11 from table 4A



























































































Enter a description that corresponds to the construction number



























































































Enter the U-Value that corresponds to the construction number
























































































Walls Database






























































































Enter construction numbers 12 thru 15 from table 4A



























































































Enter a description that corresponds to the construction number



























































































Enter the U-Value that corresponds to the construction number



























































































Enter the Group Code that corresponds to the construction number
























































































Ceilings Database






























































































Enter construction numbers 16 thru 18 from table 4A



























































































Enter a description that corresponds to the construction number



























































































Enter the U-Value that corresponds to the construction number



























































































Enter the Group Code that corresponds to the construction number
























































































Floors Database






























































































Enter construction numbers 19 thru 22 from table 4A



























































































Enter a description that corresponds to the construction number



























































































Enter the U-Value or F-Value that corresponds to the construction number



























































































Enter the PTDH if applicable that corresponds to the construction number



























































































Enter the PTDC, CLTD or Group Code if applicable that corresponds to the construction number






























































































Notes:






























































































Construction numbers 19 thru 21 uses U-Value



























































































Construction number 22 uses F-Value



























































































Construction number 19 uses PTDC



























































































Construction number 20A uses CLTD



























































































Construction number 20B uses Group Code















































































Step 3: Save the spreadsheet now with a unique name(s) that will be used as your template to start a new load






























































































calculation. (Example: MN5 Nashville TN 05NOV07.xls)  You can create as many templates as needed



























































































for possible different design conditions or construction methods.





















































































































































































Step 4: Now you are ready to start a new load calculation.  Open the saved template from Step 3 and fill out the header portion

































































































of the Form N1 tab.



























































































Note: All Yellow cells are for data entry, Blue cells contain formulas, and Green cells contain descriptive text.



























































































Enter the Project Name, Square Feet and Above Grade Volume  of  conditioned space



























































































The default indoor design conditions are pre-set but may be changed



























































































Select the Design Hour of Day





















































































Step 5: From the Form N1 you can select the Lookup hyperlink to go to the component input screen to select and enter your

































































































construction types and values.  From the input screens you can select the Return to Form N1 hyperlink to go back to



























































































the Form N1.
























































































Glass Input: Enter the type of glass, quantity, direction, dimensions, internal shading, adjustments and overhang adjustments



























































































Skylight Input: Enter the type of skylight, direction, net square feet and tilt angle



























































































Door Input: Enter the type of door direction, net square feet and color



























































































Wall Input: Enter the type of wall, direction, net square feet and color



























































































●

Partition Wall Input: Enter the type of wall, net square feet, PTDH and PTDC
























































































Ceiling Input: Enter the type of ceiling, net square feet and color



























































































Floor Input: Enter the type of floor and square feet.



























































































●

Slab Floor Input: Enter the type of floor and linear feet
























































































Internal Input:






























































































Lights: Enter the quantity, watts and diversity factor



























































































Occupants: Enter the quantity, activity level and diversity factor



























































































Office Equipment: Enter the quantity, name plate watts or BTUH, any latent values and diversity factor



























































































Plants: Enter the quantity and size



























































































Blower Heat: Select blow thru or draw thru and if additional return fan if applicable
























































































Ducts Input: Enter the type of duct system, insulation, leakage class, installed square feet of surface area or default of 1 and

































































































estimated heating and cooling ambient temperatures for specific duct location





















































































Infiltration Input: Enter the levels of exposure and tightness



























































































Ventilation Input: Enter the type of ventilation and corresponding value



























































































●

Return to the Form N1 to verify your entries and results.  If acceptable proceed to Step 6





















































































Step 6: Select File and Save As and replace the current file name with a unique file name for this load calculation.






























































































 (Example: John Smith New Residence)  You may want to create a file folder on the hard drive to store your load



























































































calculations in the event to need to re-call the load calculation for review or revisions.












































































(Example: MN5 Loads)










Step 7: Print the Form N1
