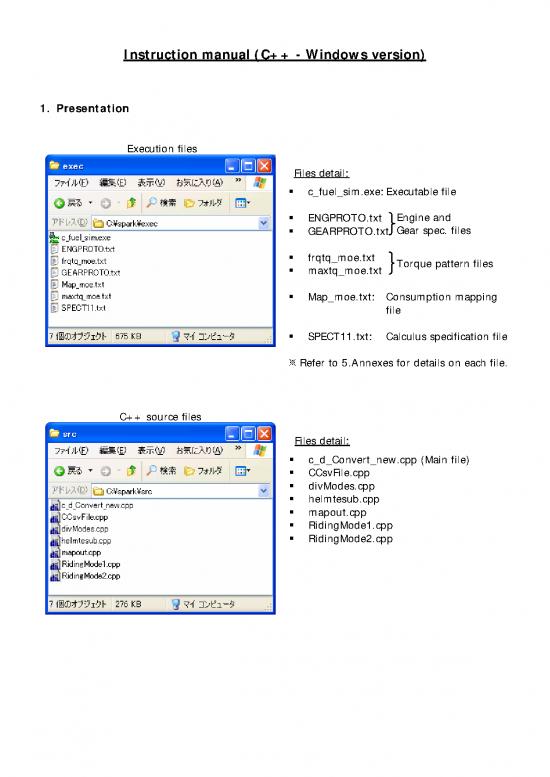

Instruction manual (C++ - Windows version) 1. Presentation Execution files Files detail: c_fuel_sim.exe: Executable file ENGPROTO.txt Engine and GEARPROTO.txt Gear spec. files frqtq_moe.txt Torque pattern files maxtq_moe.txt Map_moe.txt: Consumption mapping file SPECT11.txt: Calculus specification file ※Refer to 5.Annexes for details on each file. C++ source files Files detail: c_d_Convert_new.cpp (Main file) CCsvFile.cpp divModes.cpp helmtesub.cpp mapout.cpp RidingMode1.cpp RidingMode2.cpp 2. Execution The program can be executed via a console command or by launching manually the executable file. a) Batch execution mode 1 2 3 4 1 :Executable file name 2 :(mandatory) Calculus specification file (ref. 5. Annexes) 3 :(optional) Output file name. 4 :(optional) ”-s” or ”-S” executes the program in silent mode (The program does not stop during execution) Note: If field 2 contains an error, the program will run in manual execution mode. b) Manual execution mode (While executing : Executable file name) 1 Screen1 Usage: [] (enter key):Validate an entry, and goes to the next item. [] (up key):Return to previous entry “?”+[]: Displays an help screen to select consumption division If entered file cannot be found, an error message is displayed Screen2 Entering “?” as “-Fuel consumption div.” field value in screen1 will display the following screen Usage: Selection: Use mouse or keyboard arrows Validation: Press[] or click with mouse When all required information have been entered, press the []enter key to launch the calculus process. Press [Esc]escape key to enter again all the information (All previous data are deleted). 3. Calculus details Screen3 Display of vehicle characteristics Screen4 Display of Gear details
