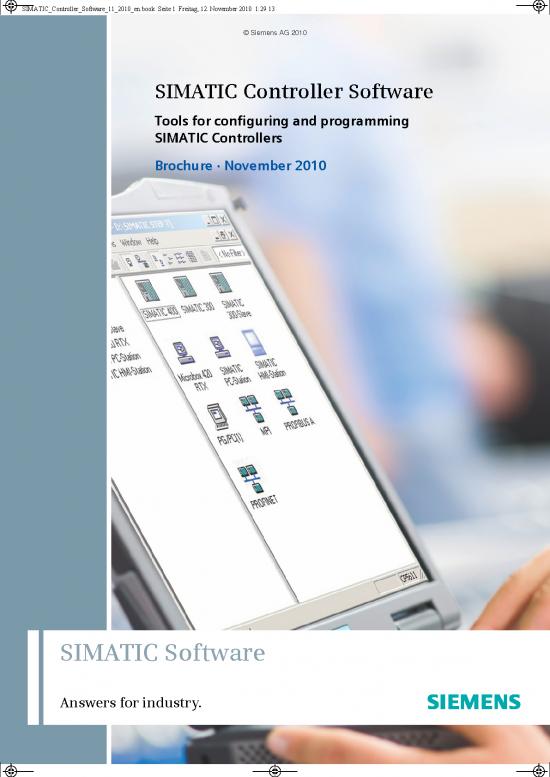

SIMATIC_Controller_Software_11_2010_en.book Seite 1 Freitag, 12. November 2010 1:29 13
© Siemens AG 2010
SIMATIC Controller Software
Tools for configuring and programming
SIMATIC Controllers
Brochure · November 2010
SIMATIC Software
Answers for industry.
SIMATIC_Controller_Software_11_2010_en.book Seite 2 Freitag, 12. November 2010 1:29 13
© Siemens AG 2010
SIMATIC Controller Software
Universal development software
Automation projects require maximum efficiency. Totally Integrated Automation Portal – intuitive, efficient,
SIMATIC Controller Software provides an integrated engi- and future-oriented
neering environment with top-class tools for the widest
range of working methods and applications. These tools The TIA Portal integrates the engineering for Totally Integrat-
are based on an integrated system, offer open interfaces, ed into a shared Engineering Framework. The boundaries be-
generate reusable blocks and therefore save time. tween STEP 7 and other software products such as the
SIMATIC WinCC visualization software are dissolved by a uni-
STEP 7 – software for all SIMATIC Controllers form look and feel and functionality. Shared services contrib-
ute to engineering efficiency. A shared database for all soft-
STEP 7 cannot only be used to program and configure pro- ware products ensures project consistency. The new Version
grammable logic controllers, but also PC-based automation 11 of STEP 7 is a component part of the TIA Portal. This is avail-
systems. Users can therefore select any hardware and use the able in two versions: STEP 7 Basic for configuring and pro-
same software even for mixed configurations. gramming the SIMATIC S7-1200 microcontroller and STEP 7
Professional for the entire SIMATIC Controller range. More
Worldwide programming standard about STEP 7 in the new TIA Portal on page 24.
STEP 7 is the world's best known and most widely used pro-
gramming software in industrial automation. And: STEP 7 is SIMATIC Controller Software
compliant with the IEC 61131-3 standard. The aim of this in- Highlights
ternational standard is to make user programs portable to de-
vices from different manufacturers. It has been adopted as ■ Intuitive operation and use of standard languages
European and German standard DIN EN 61131. make it easy for programmers and maintenance per-
sonnel to familiarize themselves with the software
PLCopen: The organization ■ Design and implementation times are shortened
Different manufacturers and users of control and program- by structured, process-oriented
ming systems have founded the international organization programming methodology
PLCopen, which promotes the use and distribution of pro- ■ The overhead for subsequent projects is reduced
gramming in accordance with IEC 61131-3. because blocks are easy to reuse
Siemens actively participates in PLCopen and has introduced ■ The option to configure rather than program
controller programming to IEC 61131. reduces the work load
■ Portability of the user software thanks to a common
The following Compliance Classes have been defined: engineering environment for all controllers
Base Level ■ Efficient process diagnostics increase plant
Conformity Level availability
Reusability Level
Independent institutes issue the relevant certificates.
S7-GRAPH (SFC) is certified to Base Level, and S7-SCL (ST) has
the Reusability Level certificate.
2 SIMATIC Controller Software
SIMATIC_Controller_Software_11_2010_en.book Seite 3 Freitag, 12. November 2010 1:29 13
© Siemens AG 2010
Contents
Totally Integrated Automation
SIMATIC Controller Software . . . . . . . . . . . . . . . . . . . . 2
System characteristics . . . . . . . . . . . . . . . . . . . . . . . . . 6
STEP 7 Professional
Tools and functions . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Hardware configuration. . . . . . . . . . . . . . . . . . . . . . . . 9
Structured programming . . . . . . . . . . . . . . . . . . . . . . 10
Program editors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Network configuring, system diagnostics,
documentation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Control configuring and software test. . . . . . . . . . . . 14
Tools and functions for
special tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Option packages
Option packages for increased data security and
traceability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Interconnection and parameterization
instead of programming. . . . . . . . . . . . . . . . . . . . . . . 18
Option packages for configuring closed-loop
controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
S7 PDIAG and ProAgent – for
effective process diagnostics . . . . . . . . . . . . . . . . . . . 20
Remote maintenance and remote link
via TeleService . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Totally Integrated Automation Portal
Integrated Engineering Framework for
Totally Integrated Automation . . . . . . . . . . . . . . . . . . 24
Programming devices
SIMATIC Field PG M3, the rugged and powerful
industrial notebook . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Additions
Software for other engineering tasks,
licensing and Update Service. . . . . . . . . . . . . . . . . . . 27
SIMATIC Controller Software 3
© Siemens AG 2010
Totally Integrated Automation
Rely on new productivity standards
for sustained competitive advantages
SyTotstally Intem featuresegrated A utomation
4
SSIMATIC_Einstiegsseiten_4_7_EN__4 4IMATIC_Einstiegsseiten_4_7_EN__4 4 111.11.2010 16:04:191.11.2010 16:04:19
